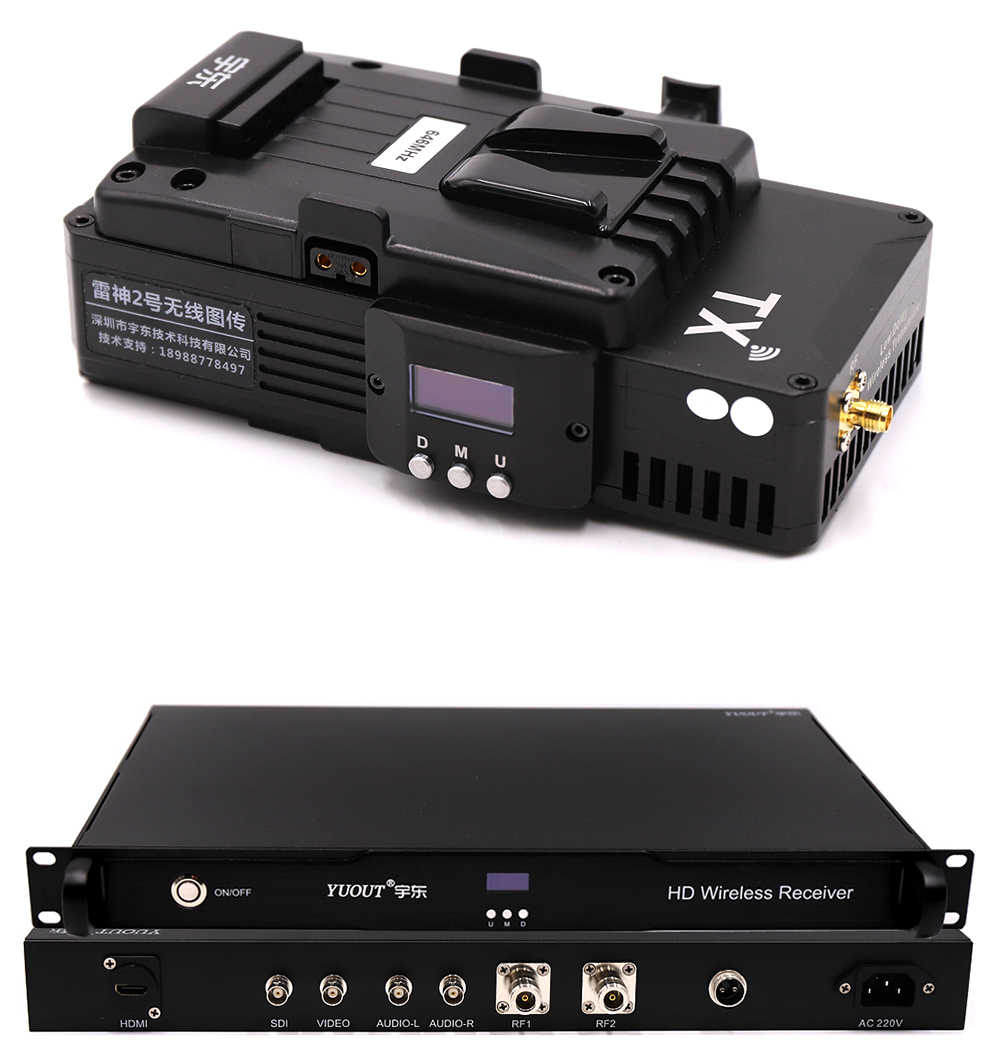

THOR 2 remote wireless image real-time transmission system is a new generation of broadcasting standard image real-time transmission system produced by the company. Using the current leading non-line-of-sight modulation technology, relatively narrow band air frequency occupation (6/8MHz) and strong anti-multipath interference ability, to overcome the problems caused by multi-path reflection and occlusion of image transmission under analog technology and conventional modulation technology, to achieve high-speed motion shooting and real-time transmission of high-quality images under non-line-of-sight (non-visibility). Especially suitable for use in complex environments; The Angle design of radio and television industry, small size, can be used for media companies to close non-line-of-sight live broadcasting with occlusiveness or open visual live broadcasting. Using the high-efficiency compression H.265 new digital coding standard, the definition reaches the full HD HD1080P picture quality, the resolution reaches (1920*1080); Support digital interface HDMI SDI input, SDI signal output, with fine picture quality, excellent color, rich color control ability and other high-definition picture quality characteristics.

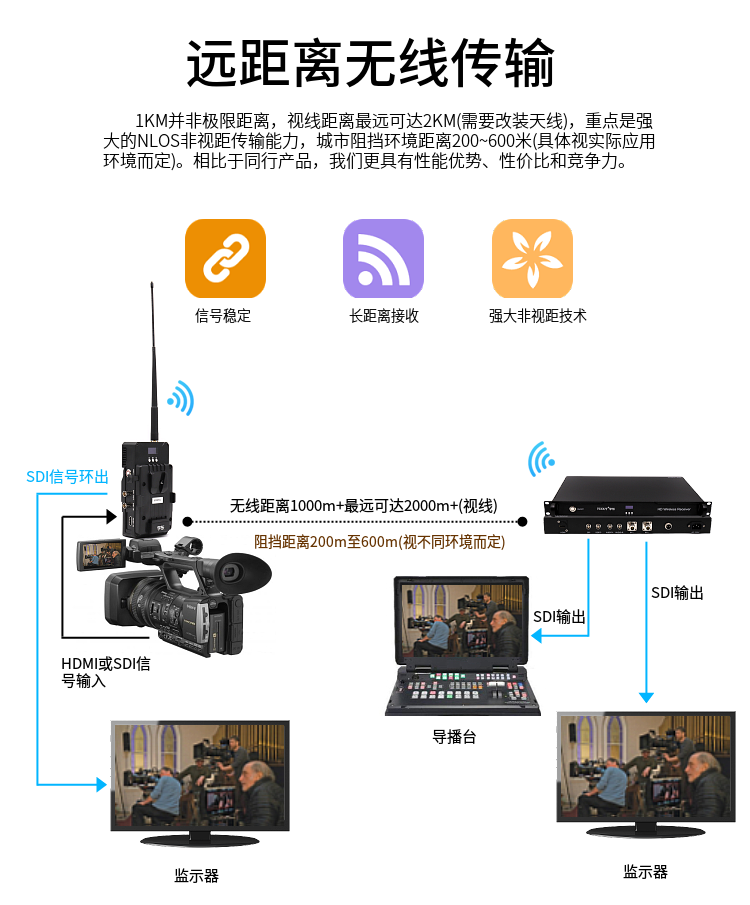

1. Line of sight distance 1 ~ 2KM non-line of sight distance 200 ~ 600 meters (depending on the actual application environment)

2. Support 1080P/60Hz, resolution up to 1920*1080 compatible with 1080I, 720P, 480P.

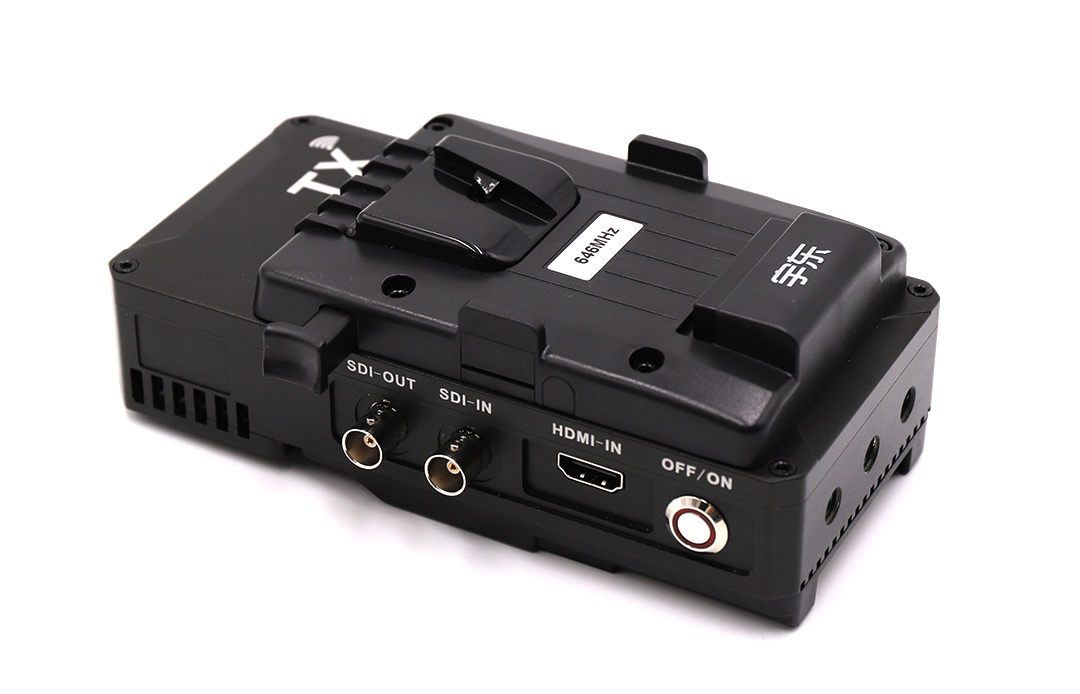

3. Supports HDMI, HD-SDI, 3G-SDI and other high-definition ports.

4. Plug and play without complicated Settings.

5. Support frequency switch, support one more receive.

6. Support Type B port: external power port, support DC 12-16V.

7. Support plate: front and back plate, DC power through.

8. Compatible with EDID structure 1.1

9. Receive a sucker antenna or feeder

10. The device has a liquid crystal display for displaying parameters and adjusting parameters

發射機

工作頻率	300MHz～4400MHz頻率訂制
射頻功率	1～5W可調
FEC	1/2，2/3，3/4，5/6，7/8
保護間隔	1/32，1/16，1/8，1/4
信道帶寬	2-8MHz
碼流	2Mbps～12Mbps
時延	≤60ms
傳輸距離	視線距離1～2KM
音視頻接口	HDMI SDIx1輸入 SDI環出
圖像清晰度	HD1080P，向下兼容1080I、720P、480P及標清
圖像幀率	24、50、60幀/秒，兼容其它幀率
電源	DC12-16V，廣電專用電池 SONY V型扣
尺寸規格	165×82×52mm (L×W×H)
重量	660g，不含電池

接收機

工作頻率	300MHz～880MHz 頻率訂制
信道帶寬	2/3/4/5/6/7/8MHz
靈敏度	2MHz：-103dBm；2.5MHz：-102dBm；4MHz：-100dBm；8MHz：-97dBm
接收技術	空間分集技術
接收極化	垂直極化，雙天線接收
音視頻接口	SDI*1輸出
圖像清晰度	HD1080P
圖像幀率	24、50、60幀/秒，兼容其它幀率
電源	AC220V/DC12V
尺寸規格	48028045mm， 1U機箱
重量	2.5Kg
